02-06 Honda CRV AWD [Flatout TR]

Flatout Suspension

$1,836.00 - $2,136.00
(No reviews yet) Write a Review
SKU:
TR-0206CRV
Availability:
Built to order - typically in 3-4 weeks
Adding to cart… The item has been added

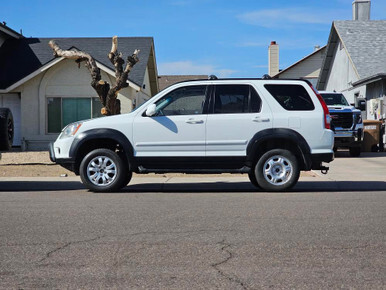

02-06 Honda CR-V Offroad Lift Suspension

The NEW Trail Runner (TR) kits are an OEM style shock & spring combo much like the OEM suspension (not a height adjustable coilover) to give you a ride height 2" higher than OEM. To achieve the added height, we have added stroke to the shock, and assembly length so we gain in upward and downward travel.

Our assembly also looks completely OEM as it is all black. You can get additional height by adding spacers from anyone. As these are just like the OEM assemblies, they can be used with any spring on the market meant for OEM style shocks (Bilstein, KYB, etc.); lift springs, overload springs, etc.

The Trail Runner (TR) was made with a strict requirement to feel like an OEM suspension, but with more travel, enhancing offroad capabilities. Performance-wise, these are a better option than OEM shocks or Bilstein shocks (which do not increase travel and are typically a more sport-tuned shock) paired with strut top spacers. Those options are strictly for adding ground clearance, nothing more.

Kit Includes:
2 Front Assemblies
2 Rear Assemblies
2 Tie Rod Ends (14mm)

FRONT ASSEMBLY SPECS:

  Shock Stroke Assembly Length Shock Rod OD Shock Body OD
OEM 61/8" 25" 22mm 52mm
Trail Runner 7 1/8" 26" 22mm 54mm



REAR ASSEMBLY SPECS:

  Shock Stroke Assembly Length Shock Rod OD Shock Body OD
OEM 4 1/2" 19" 14mm 45mm
Trail Runner 5 1/2" 20 1/2" 22mm 45mm



DAMPER KNOB 1 5 10
  OFFROAD OEM-RIDE SPORT



Installation Procedure:

FRONT SUSPENSION

REAR SUSPENSION

FRONT TORQUE SPECIFICATIONS
Damper Shaft Nut   59 N.m (6.0 kgf-m, 43 lbf-ft)
Upper Flange Nut   44 N.m (33 ft.lbs.)
Brake Hose Bracket Bolt   22 N.m (2.2 kgf-m, 16 lbf-ft)
Wheel Sensor Bracket   9.8 N.m (1.0 kgf-m, 7.2 lbf-ft)
Damper Pinch Bolt   157 N.m (16.0 kgf-m, 116 ft-lb)
Tie-rod to Steer Arm Nut   43 N.m (4.4 kgf-m, 32 lbf-ft)

REAR TORQUE SPECIFICATIONS
Damper Shaft Nut   29 N.m (3.0 kgf-m, 22 lbf-ft)
Upper Flange Nut   74 N.m (7.5 kgf-m, 54 lbs-ft..)
Damper Bottom Bolt   93 N.m (9.5 kgf-m, 69 ft-lb)

Flatout Suspension warrants to the original purchaser that these parts manufactured and/or sold by Flatout Suspension (the product) is free from defects in material and workmanship under normal use. Flatout Suspension warrants that the product will perform substantially in accordance with the specifications set forth in the documentation provided with it. The above express warranties are made for a period of the lesser of 12,000 miles or 12 months from the date the product is installed in your vehicle.
